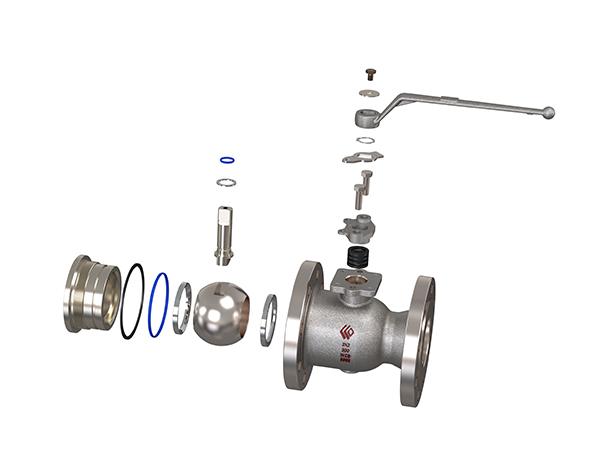

Compact One-Piece Design: Minimizes leakage risks with fewer joints and no body-bolting.
Floating Ball Mechanism: Provides effective bi-directional sealing by using line pressure to press the ball against the downstream seat.
Low Torque Operation: Ensures smooth handle operation, even after prolonged use.
Corrosion-Resistant Materials: Available in stainless steel and other alloys for use in harsh environments.
Cost-Effective: Lower manufacturing cost compared to two-piece or three-piece valves, without compromising performance.
Maintenance-Friendly: Simple structure enables quick inspection and replacement.
| Parameter | Specification |
|---|---|
| Function | On/Off (Shut-off) or Flow Control |
| Connection Type | Threaded (NPT/BSP), Socket Weld, Flanged |
| Material | Stainless Steel (CF8, CF8M), Carbon Steel (WCB), Brass |
| Max. Nominal Pressure | Up to PN63 / 1000 PSI / Class 600 |
| Max. Nominal Size | DN50 (2") |
| Allowable Fluid Temperature | -20°C to +200°C (Depending on seat material) |
