Tight Shutoff – Floating ball design ensures leak-tight performance under moderate pressure

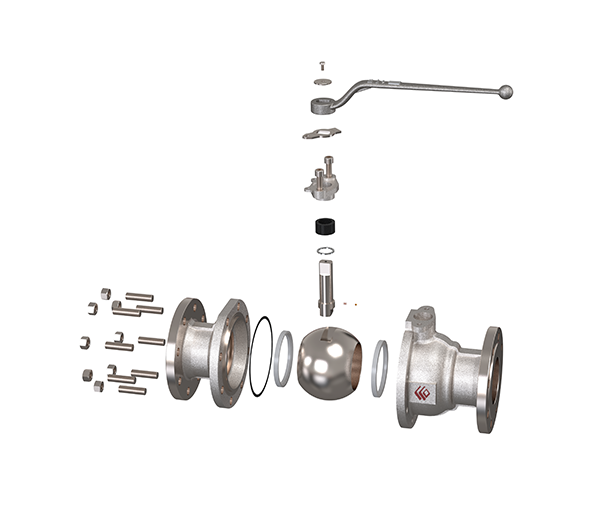

Two-piece Body – Allows easier access for maintenance and seat replacement
Lightweight & Compact – Ideal for installations with space or weight limitations
Versatile Connection Options – Compatible with various piping systems
Reliable Operation – Simple design with minimal moving parts reduces failure risk
| Parameter | Specification |
|---|---|
| Function | On/off shutoff for clean or slightly contaminated fluids |
| Connection Type | Flanged (RF/FF), Threaded (NPT/BSP), Socket Weld, Butt Weld |
| Material | Carbon Steel (WCB), Stainless Steel (CF8, CF8M), Brass |
| Max. Nominal Pressure | Class 150 to Class 600 (up to 100 bar) |
| Max. Nominal Size | DN 300 (12") |
| Allowable Fluid Temperature | -29°C to +400°C (based on body and seat material) |
 | Applications
|
