2-Piece Truinion Mounted Ball Valve

2-Piece Truinion Mounted Ball Valve
2-Piece Truinion Mounted Ball Valve

2-Piece Truinion Mounted Ball Valve

Engineered for high-performance applications requiring reliable shutoff, even under extreme pressures and temperatures. With a trunnion-mounted design, the ball is mechanically anchored to reduce seat load and ensure consistent sealing. The two-piece cast steel body offers exceptional structural integrity, making this valve ideal for both onshore and offshore flow control systems. It is available in various sizes, pressure ratings, and materials to suit diverse industrial processes.

    Benefits

    • Trunnion Mounted Ball – Ensures stable operation and tight sealing under high pressure


    • Two-piece Body Design – Balances ease of maintenance with cost-efficiency


    • Durable Cast Steel Construction – Withstands mechanical and thermal stress in demanding environments


    • Fire-safe, Anti-static Design – Meets international safety and reliability standards (API 6D, API 607)


    • Flexible Actuation Options – Suitable for manual, pneumatic, electric, or hydraulic actuators

    Technical Data

    ParameterSpecification
    FunctionShutoff and flow control for high-pressure applications
    Connection TypeFlanged (RF/RTJ), Butt Weld, Socket Weld
    MaterialCast Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Alloy Steel
    Max. Nominal PressureClass 150 – Class 2500 (up to 420 bar)
    Max. Nominal SizeDN 600 (24")
    Allowable Fluid Temperature-29°C to +425°C (depending on body/seat material)

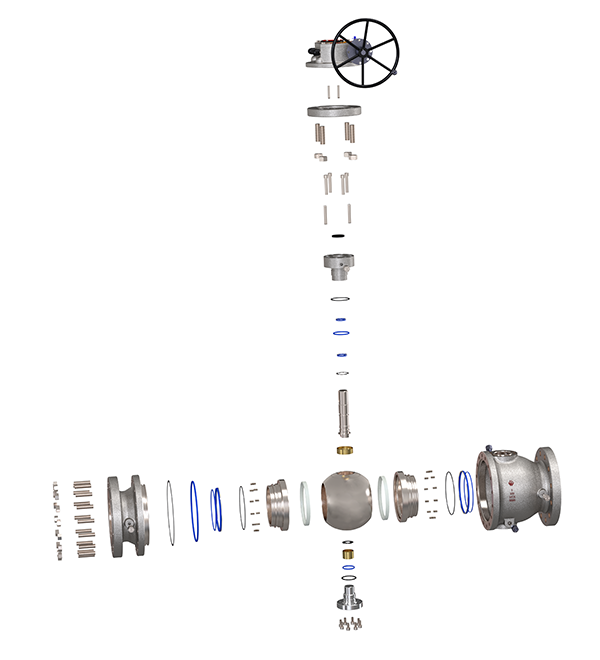

    Sectional Drawings


    Applications


    • Oil & Gas Transmission and Distribution


    • Refining and Petrochemical Facilities


    • Power Generation and Steam Systems


    • LNG Terminals and Cryogenic Services


    • Offshore Platforms and Subsea Installations


    • Water Injection and Pipeline Isolation Systems
