3-Piece Cast steel Truinion Mounted Ball Valve

3-Piece Cast steel Truinion Mounted Ball Valve
3-Piece Cast steel Truinion Mounted Ball Valve

3-Piece Cast steel Truinion Mounted Ball Valve

Designed to deliver dependable shutoff and flow control in demanding industrial environments. Built with a robust cast steel body and a trunnion-supported ball design, this valve ensures stability, low operating torque, and reliable sealing under both high and low pressure. The three-piece construction simplifies maintenance and reduces downtime by allowing internal access without removing the valve from the pipeline. This valve is a trusted solution in oil, gas, petrochemical, and power generation systems.

    Benefits

    • Trunnion Mounted Design – Reduces torque, supports high-pressure operation, and minimizes seat wear


    • Three-piece Body – Simplifies in-line maintenance, making it cost-effective and efficient


    • High Strength Cast Steel Body – Provides durability in corrosive or high-load conditions


    • Fire-Safe & Anti-Static Features – Conforms to international safety standards


    • Optional Actuation – Available in manual, pneumatic, electric, or hydraulic actuation


    Technical Data

    ParameterSpecification
    FunctionShutoff and flow control for high-pressure fluid systems
    Connection TypeFlanged (RF/RTJ), Butt Weld, Socket Weld
    MaterialCast Carbon Steel (WCB), Stainless Steel (CF8, CF8M), Alloy Steel
    Max. Nominal PressureClass 150 to Class 2500 (up to 420 bar)
    Max. Nominal SizeDN 600 (24")
    Allowable Fluid Temperature-29°C to +425°C (dependent on materials and seat type)

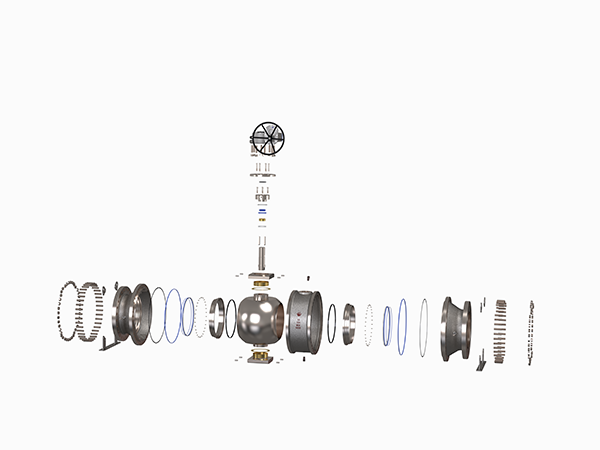

    Sectional Drawings


    Applications


    • Oil & Gas Pipelines and Storage Facilities


    • Petrochemical Plants and Refineries


    • Power Generation Systems


    • LNG Terminals and Cryogenic Installations


    • Marine and Offshore Operations


    • High-Pressure Steam and Process Lines
