Low Torque Operation – Trunnion support reduces friction, enabling smoother actuation
Enhanced Safety – Anti-blowout stem, fire-safe design, and double block & bleed capability

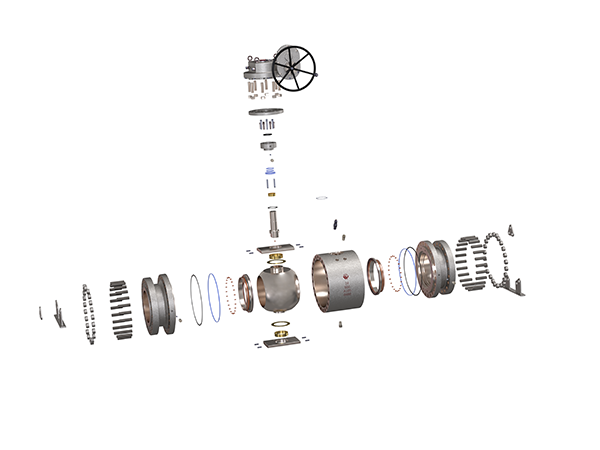

Easy Maintenance – Three-piece body design allows internal access without pipeline disassembly
High Integrity Sealing – Seat design ensures zero leakage under high pressure
Wide Pressure & Temperature Range – Built for the most demanding applications
| Parameter | Specification |
|---|---|
| Function | Shutoff and flow control in high-pressure systems |
| Connection Type | Flanged (RF/RTJ), Butt Welded, Socket Welded, Hub Ends |
| Material | Forged Carbon Steel (A105), Stainless Steel (F304, F316), Alloy Steel |
| Max. Nominal Pressure | Up to Class 2500 (420 bar) |
| Max. Nominal Size | DN 600 (24") |
| Allowable Fluid Temperature | -46°C to +600°C (material and seal dependent) |
 | Applications
|
