Product

API Globe valve

Linear motion valve primarily used to start, stop, and regulate fluid flow in pipelines. Its distinctive design, with a disc that moves perpendicular to the seat, enables precise throttling and tight shut-off. The flow path through the valve body creates higher resistance compared to other valve types, making it ideal for applications requiring accurate flow control. Available in a variety of materials and configurations, globe valves are widely used in industries that demand durability, performance, and fine flow adjustment.

Benefits

Excellent Flow Control: Ideal for throttling applications with smooth and precise regulation.
Tight Sealing: Provides superior shut-off capability compared to many other valve types.
Durable Construction: Robust body and seating materials ensure long operational life in high-pressure systems.
Easy Maintenance: Top-entry design allows quick access to internal components for repair or inspection.
Wide Pressure & Temperature Range: Suitable for both low- and high-pressure/temperature services.
Versatile Design: Available in various bonnet and disc options to match specific system needs.

Technical Data

Parameter	Specification
Function	On/Off or Throttling (Flow Regulation)
Connection Type	Flanged, Butt Welded, Socket Welded, Threaded
Material	Cast Iron, Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Alloy Steel
Max. Nominal Pressure	Up to Class 2500 / PN420
Max. Nominal Size	Up to DN600 (24")
Allowable Fluid Temperature	-29°C to +600°C (depending on material and trim)

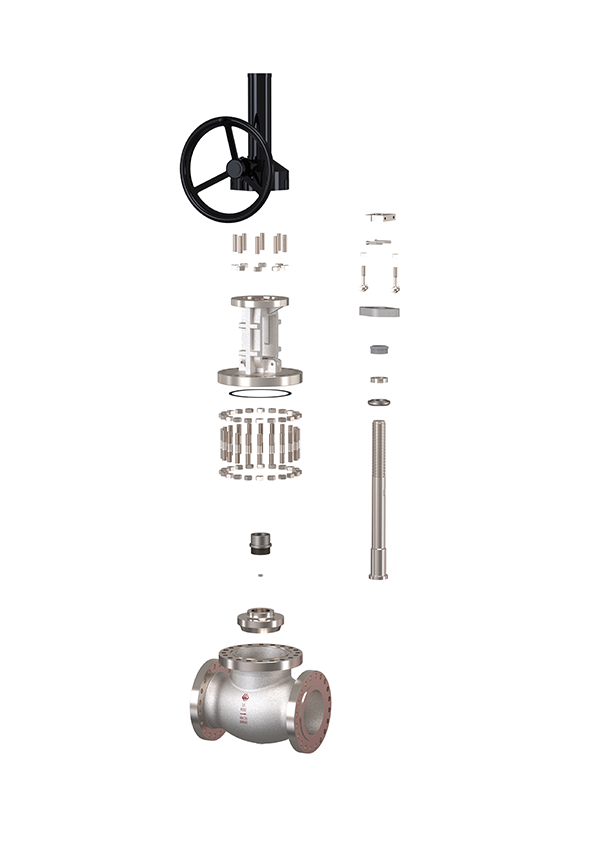

Sectional Drawings

Applications

Steam and condensate systems
High-pressure water supply lines
Oil and gas pipelines
Chemical and petrochemical processing
Power plants (boiler and turbine systems)
Refining and industrial process control
Marine systems
Pulp and paper manufacturing
