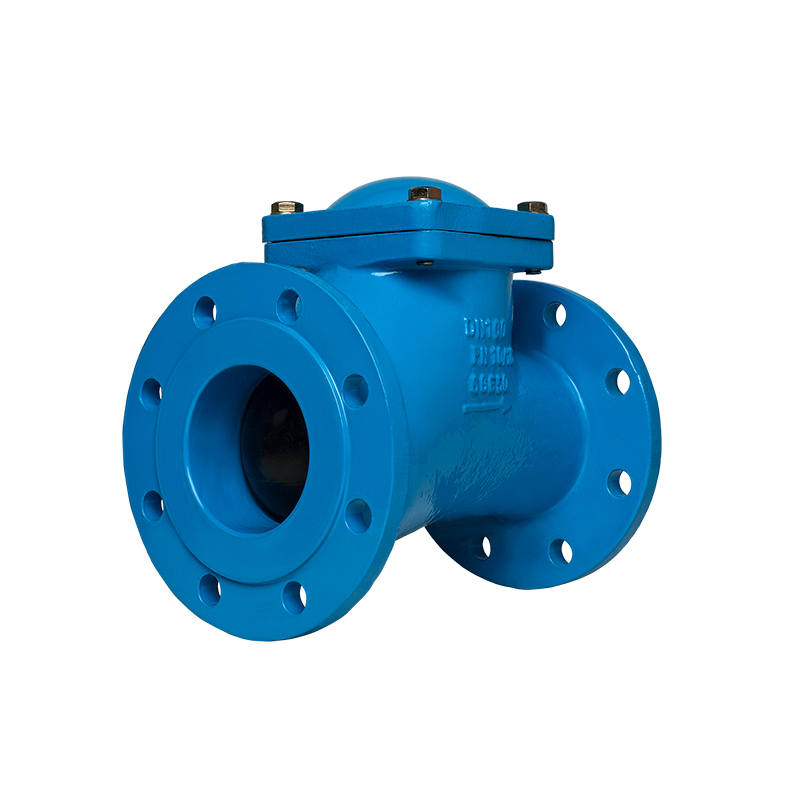

Ball Check Valve

Ball Check Valve
Ball Check Valve

Ball Check Valve

A non-return valve that uses a freely moving ball as the closing mechanism to prevent backflow. When the forward flow pressure is sufficient, the ball is lifted from the seat, allowing flow through the valve. When flow reverses, gravity and back pressure push the ball back onto the seat, sealing the valve. This simple and robust design provides reliable operation with minimal maintenance, making it ideal for slurry, wastewater, and viscous fluid systems.


    Benefits

    • Self-cleaning design: The ball rotates during operation, reducing seat wear and preventing clogging


    • Simple and durable: Minimal moving parts ensure long service life


    • Excellent for dirty or viscous media: Suitable for slurry, sewage, and chemical applications


    • Horizontal or vertical installation: Flexible mounting based on pipeline layout


    • Low maintenance: Easy access and cleaning, no external actuation needed


    • Quiet operation: Reduces water hammer and noise in the system


    Technical Data

    ParameterDetails
    FunctionPrevent backflow using a free-moving ball
    Connection TypeFlanged, Threaded, Socket Weld
    MaterialBody: Cast Iron, Ductile Iron, WCB, Stainless SteelBall: Nitrile Rubber Coated, Stainless Steel, EPDM, PTFE
    Max. Nominal PressurePN10 ~ PN25 / Class 125 ~ Class 300
    Max. Nominal SizeDN25 ~ DN600 (1” ~ 24”)
    Allowable Fluid Temperature-10°C to +180°C (depending on elastomer and body material)


    Sectional Drawings

    ball check valve.jpg

    Applications


    • Sewage and wastewater treatment plants


    • Slurry and abrasive fluid pipelines


    • Chemical and food processing industries


    • Pumping systems and lifting stations


    • Industrial water supply systems


    • Agricultural irrigation systems
