Knife Gate Valve

Knife Gate Valve

Specifically designed to handle tough, abrasive, and viscous media in industries where conventional valves struggle. Its sharp-edged blade slices through thick slurry, pulp, or solids-laden fluids with minimal flow obstruction. Featuring a compact body and unidirectional or bidirectional sealing options, this valve is ideal for low-pressure, high-solid-content flow applications in harsh environments. Available in various actuation types and body materials to suit different process requirements.

    Benefits

    • Non-Clogging Performance – The sharp gate cuts through solids, preventing jamming and reducing downtime


    • Compact and Lightweight – Easy to install in confined spaces, especially in retrofit projects


    • Reliable Shutoff – Designed for tight sealing even with challenging media


    • Low Maintenance – Simple structure with minimal wear parts


    • Wide Range of Sizes and Materials – Suitable for many industrial sectors and fluid types


    Technical Data

    ParameterSpecification
    FunctionIsolation of thick, slurry-based or viscous media
    Connection TypeWafer, Lug, Flanged, U-type Lug
    MaterialCast Iron, Ductile Iron, Carbon Steel, SS304, SS316, Duplex optional
    Max. Nominal PressureUp to 10 bar (150 psi), higher rating optional
    Max. Nominal SizeDN 1200 (48")
    Allowable Fluid Temperature-20°C to +425°C (depending on body and seat material)

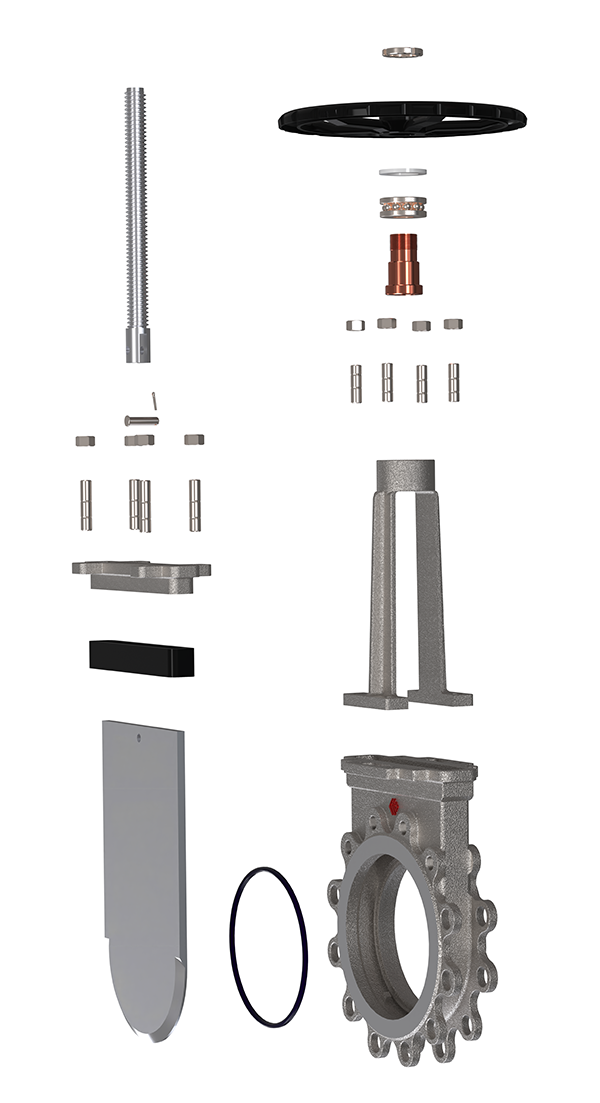

    Sectional Drawings


    Applications


    • Mining and Mineral Processing


    • Pulp and Paper Industry


    • Wastewater Treatment Plants


    • Chemical and Petrochemical Systems


    • Power and Energy Sector (Ash Handling, Fly Ash)


    • Food and Beverage (Sugar Slurry, Grain Waste)
