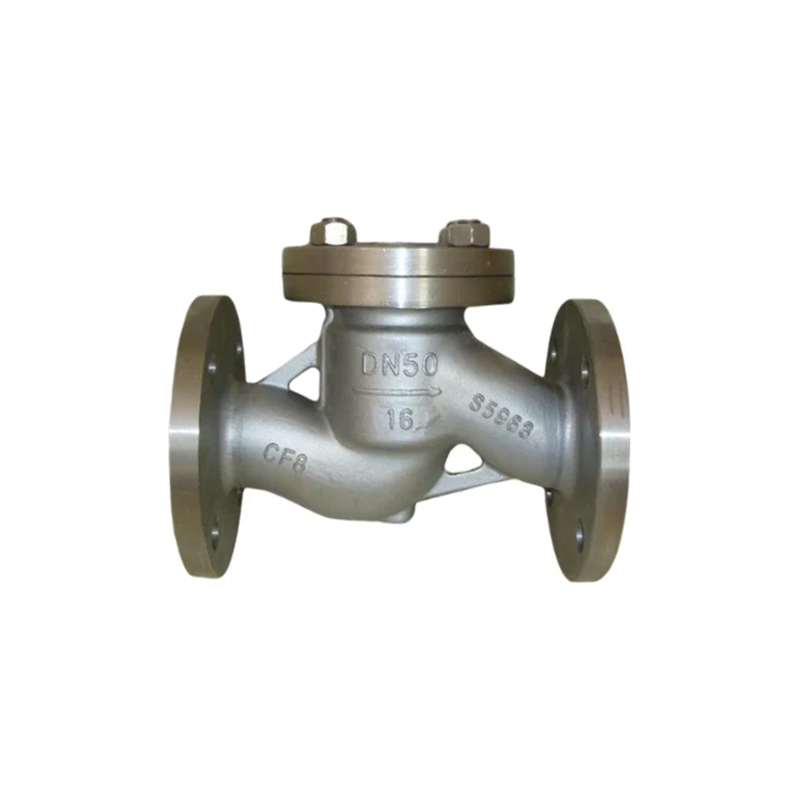

Lift Check Valve

Lift Check Valve
Lift Check Valve

Lift Check Valve

A type of non-return valve that allows fluid to flow in one direction and prevents reverse flow using a vertically moving disc. When the upstream pressure exceeds the downstream pressure, the disc is lifted off the seat; when flow reverses, the disc returns to the seat to stop backflow. With a simple and durable design, lift check valves provide reliable sealing, especially in horizontal installations with high pressure or clean media.


    Benefits

    • Positive shutoff: Ensures leak-free backflow prevention


    • Durable and long-lasting: Fewer moving parts reduce wear


    • Suitable for high pressure: Strong body structure withstands demanding conditions


    • Compact design: Ideal for pipelines with limited space


    • Low maintenance: Easy access and minimal internal friction


    • Precise operation: Especially effective in clean liquid or gas services


    Technical Data

    ParameterDetails
    FunctionPrevent backflow (non-return valve with vertical disc motion)
    Connection TypeFlanged (ANSI/DIN), Threaded, Socket Weld, Butt Weld
    MaterialBody: WCB, LCB, CF8, CF8M, Stainless SteelDisc: SS304, SS316, Alloy SteelSeat: Metal-to-metal or Soft Seat (PTFE)
    Max. Nominal PressurePN16 ~ PN100 / Class 150 ~ Class 600
    Max. Nominal SizeDN15 ~ DN600 (1/2” ~ 24”)
    Allowable Fluid Temperature-29°C to +450°C (depending on material and seat design)


    Sectional Drawings

    Lift Check Valve.jpg

    Applications


    • Steam and condensate systems


    • High-pressure water or air lines


    • Chemical and petrochemical pipelines


    • Boiler and feedwater systems


    • Oil and gas transmission networks


    • General industrial process lines
