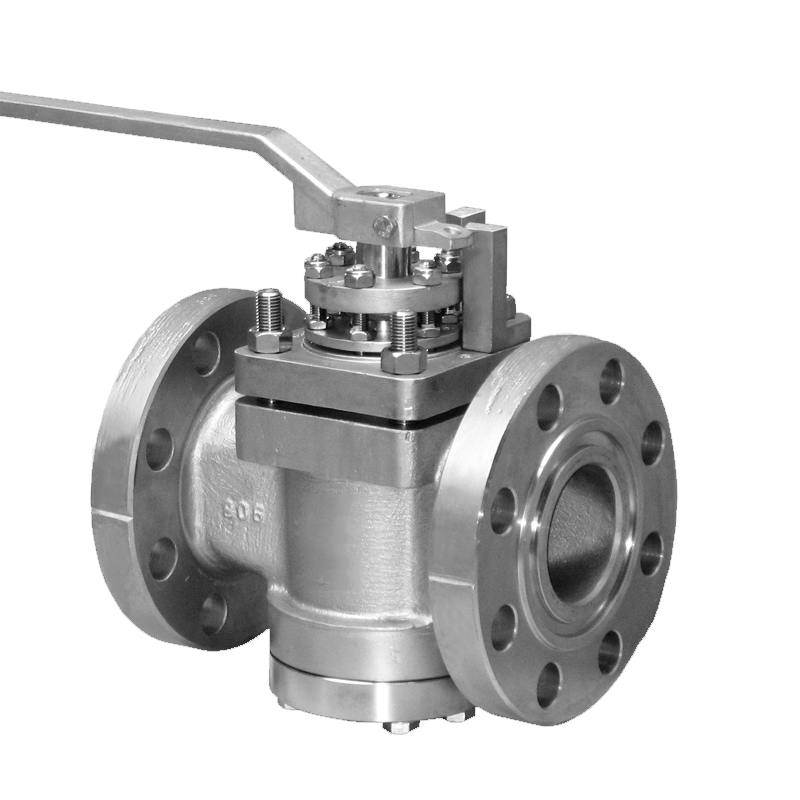

Fast operation: 90° rotation allows quick opening and closing.
Excellent sealing: Tapered plug and precision body seat offer tight shutoff.
Low pressure drop: Straight-through flow path minimizes flow resistance.
Versatile designs: Available for high-pressure, high-temperature, or corrosive service.
Minimal maintenance: Simple design makes it easy to maintain and repair.
| Parameter | Details |
|---|---|
| Function | On/Off and flow isolation |
| Connection Type | Flanged, Threaded, Butt Weld, Socket Weld |
| Material | Cast Iron, Carbon Steel, Stainless Steel, Alloy Steel, PTFE or rubber-lined |
| Max. Nominal Pressure | PN10 ~ PN100 / Class 150 ~ Class 600 |
| Max. Nominal Size | DN15 ~ DN600 (1/2″ ~ 24″) |
| Allowable Fluid Temperature | -20°C ~ +425°C (varies by material and design) |
