Wafer Type Concentric Butterfly Valve
Product
Product
Wafer Type Concentric Butterfly Valve

Wafer Type Concentric Butterfly Valve
Wafer Type Concentric Butterfly Valve

Wafer Type Concentric Butterfly Valve

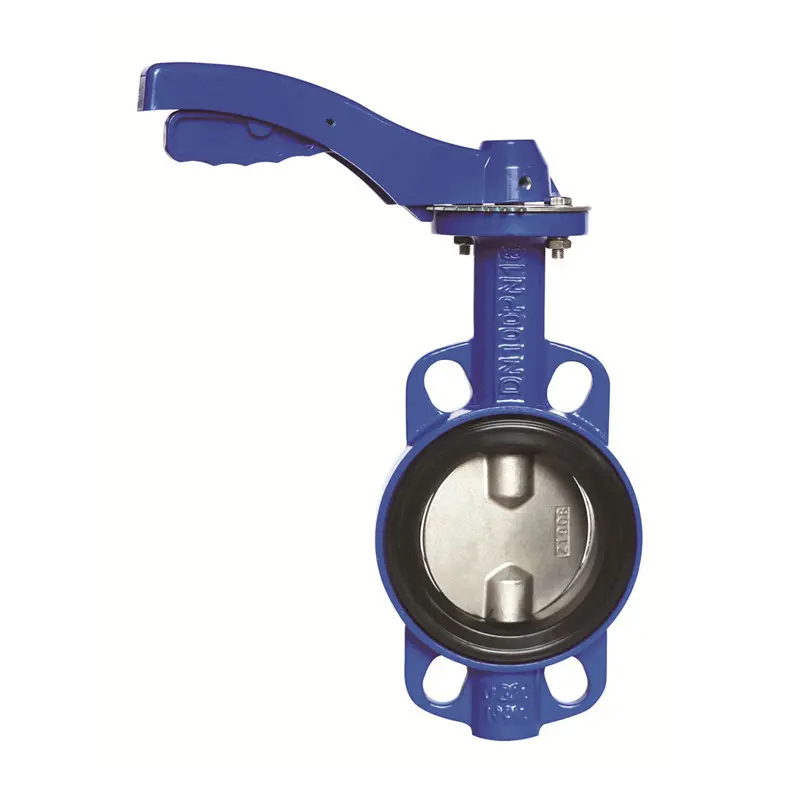

Compact, lightweight flow control valve designed for space-saving and cost-effective fluid regulation. Its centerline design aligns the disc symmetrically within the seat, providing a tight seal with minimal torque. The wafer-style body fits between two pipeline flanges, making it easy to install and remove. With a soft elastomer seat (such as EPDM or NBR), it delivers excellent leak-tight sealing for a variety of general-purpose applications.


    Benefits

    • Compact & lightweight: Ideal for space-constrained installations


    • Reliable sealing: Resilient seat provides tight shutoff in both directions


    • Quick installation: Wafer design fits between flanges without extra hardware


    • Low torque operation: Reduces actuator size and energy consumption


    • Cost-efficient: Affordable solution for common flow control needs


    • Versatile actuation: Compatible with manual, pneumatic, or electric actuators


    Technical Data

    ParameterDetails
    FunctionOn/Off and throttling (quarter-turn operation)
    Connection TypeWafer Type (fits between DIN, ANSI, or JIS flanges)
    MaterialBody: Cast Iron, Ductile Iron, Stainless SteelDisc: Stainless Steel, Nylon-coated, Aluminum BronzeSeat: EPDM, NBR, PTFE, VITON
    Max. Nominal PressurePN10 / PN16 / Class 150
    Max. Nominal SizeDN50 ~ DN1200 (2” ~ 48”)
    Allowable Fluid Temperature-10°C to +120°C (depending on seat material)


    Sectional Drawings

    Wafer Type Centerline Soft Butterfly Valve.jpg

    Applications


    • Water supply and distribution


    • Wastewater and sewage systems


    • HVAC and building utilities


    • Light-duty chemical processing


    • Fire protection piping


    • Irrigation and agriculture systems
